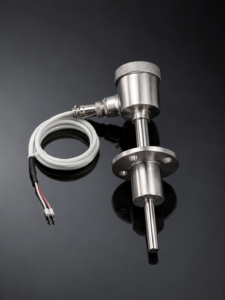

Tri-Clover / Tri-Clamp RTD Sensors
Hygienic and high-accuracy PT100 RTD sensors with sanitary Tri-Clamp construction for reliable temperature measurement in food, dairy, pharmaceutical and process applications
Tri-Clover / Tri-Clamp RTD Sensors
Tempflow Engineers manufactures reliable sanitary Tri-Clover / Tri-Clamp RTD sensors for accurate and stable temperature measurement in hygienic process applications.
Sensors are available with different RTD elements, accuracy classes, Tri-Clamp sizes, sheath materials, diameters, wiring configurations and customized probe lengths.
Technical Specifications
Standard and customized sanitary configurations available as per application requirements.
| Parameter | Specification |
|---|---|
| RTD Element | PT100 / PT1000 / PT200 / PT500 |
| Accuracy | Class AA / Class A / Class B |
| Tri-Clamp / Tri-Clover Size | 1" / 1.5" / 2" / 2.5" / 3" / 4" / Customized |
| Clamp Connection | Sanitary Tri-Clamp / Tri-Clover Connection |
| Sheath Material | SS316 / SS316L / Hastelloy-c276 |
| Sheath Diameter | 3 mm to 12 mm / Customized |
| Wiring | 2-Wire / 3-Wire / 4-Wire |
| Configuration | Simplex / Duplex / Customized |
| Temperature Range | Application dependent / Customized |
| Probe Length | Customized as per application |
Available Tri-Clamp Sizes
Sanitary Tri-Clamp sizes available for different process connection requirements.
1"
Tri-Clamp
1.5"
Tri-Clamp
2"
Tri-Clamp
2.5"
Tri-Clamp
3"
Tri-Clamp
4"
Tri-Clamp
